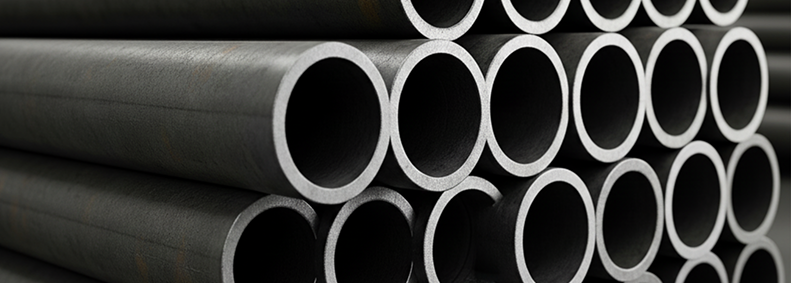

API 5L X42 Line Pipes
For pipeline systems where moderate strength, reliability, and cost efficiency are required, API 5L X42 line pipes are widely specified. As one of the most commonly used grades within the API 5L specification, X42 offers a balanced combination of mechanical strength, weldability, and availability, making it suitable for a wide range of pipeline applications.
API 5L X42 pipes are used for the transportation of oil, natural gas, water, and other fluids in both upstream and downstream operations. The grade designation “X42” refers to a minimum yield strength of 42,000 psi (~290 MPa), providing adequate load-bearing capacity for standard pipeline systems.
Available in both PSL1 and PSL2 variants, X42 pipes can be selected based on project requirements, offering flexibility in terms of quality level, testing requirements, and compliance standards.
Mechanical Properties
| Property | Value | Unit |
|---|---|---|
| Yield Strength (min.) | 290 | MPa |
| Tensile Strength | 415 – 655 | MPa |
| Elongation | ≥ 20 | % |
| Hardness | ~120 – 200 | HB |
| Density | 7.85 | g/cm³ |
| Modulus of Elasticity | 200 | GPa |
Chemical Composition
| Element | Typical Limit (%) |
|---|---|
| Carbon (C) | ≤ 0.28 |
| Manganese (Mn) | ≤ 1.40 |
| Phosphorus (P) | ≤ 0.030 |
| Sulfur (S) | ≤ 0.030 |
Controlled chemistry ensures a balance between strength and weldability, making the material suitable for pipeline fabrication.
Applications
- Oil & Gas Transportation: Used for transmission of crude oil and natural gas in onshore pipeline networks where moderate pressure conditions are involved.
- Water Transmission Pipelines: Widely used in municipal and industrial water supply systems due to cost efficiency and adequate strength.
- Refineries & Process Plants: Applied in non-critical process piping systems handling fluids at moderate pressure levels.
- Distribution Networks: Regional pipeline systems distributing gas and liquids to industrial and commercial users.
- Infrastructure & Utility Projects: Used in construction, mining, and industrial infrastructure where pipeline systems are required.
- Low to Medium Pressure Systems: Suitable for applications where extreme strength or advanced testing is not mandatory.
Weldability & Processing
Weldability:
API 5L X42 pipes offer good weldability due to moderate carbon content.
- Standard welding processes applicable
- Minimal preheating is required in most cases
Fabrication Considerations:
- Suitable for cutting, bending, and forming
- Easy handling in large-scale pipeline installations
Quality Assurance
- Mechanical Testing: Each pipe is tested for yield strength, tensile strength, and elongation as per API 5L requirements. These tests ensure the material meets performance standards for pipeline applications. Testing validates the pipe’s ability to handle operational loads and pressure conditions.
- Dimensional Accuracy: Pipes are inspected for outer diameter, wall thickness, length, and straightness to ensure compliance with API tolerances. Dimensional consistency is essential for proper alignment and installation. Accurate dimensions reduce field adjustments and improve overall pipeline integrity.
- Weldability Tests: Material is evaluated to ensure compatibility with pipeline welding practices. Weld performance is critical for maintaining system reliability and preventing failures. Controlled co
