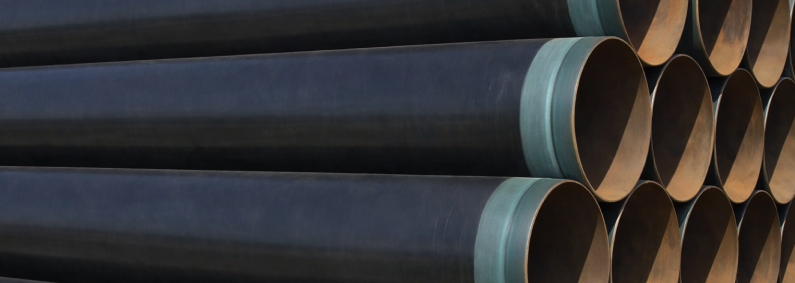

API 5L X65 Line Pipes
For pipeline systems requiring higher strength, improved efficiency, and long-distance transmission capability, API 5L X65 line pipes are widely specified. As a high-strength grade within the API 5L specification, X65 enables optimized pipeline design by allowing higher pressure handling with reduced wall thickness.
The designation “X65” corresponds to a minimum yield strength of 65,000 psi (~450 MPa), making it suitable for cross-country pipelines, high-capacity transmission systems, and demanding industrial applications. Compared to lower grades, X65 provides improved structural integrity and performance under load.
Available in both PSL1 and PSL2 variants, X65 pipes are commonly used in EPC projects, export-oriented supply, and critical oil & gas infrastructure, where reliability and compliance are essential.
Mechanical Properties
| Property | Value | Unit |
|---|---|---|
| Yield Strength (min.) | 450 | MPa |
| Tensile Strength | 535 – 760 | MPa |
| Elongation | ≥ 20 | % |
| Hardness | ~150 – 230 | HB |
| Density | 7.85 | g/cm³ |
| Modulus of Elasticity | 200 | GPa |
Chemical Composition
| Element | Typical Limit (%) |
|---|---|
| Carbon (C) | ≤ 0.24 |
| Manganese (Mn) | ≤ 1.60 |
| Phosphorus (P) | ≤ 0.025 |
| Sulfur (S) | ≤ 0.015 |
Lower impurity levels improve toughness, weldability, and performance in demanding environments.
Applications
- Cross-Country Oil & Gas Pipelines: Long-distance transmission of crude oil and natural gas, where high strength improves efficiency and reduces material usage.
- High-Pressure Pipeline Networks: Suitable for systems operating under elevated pressure conditions requiring enhanced structural integrity.
- Refineries & Petrochemical Plants: Process pipelines handling pressurized fluids and gases.
- Offshore & Onshore Projects: Used in demanding environments where performance and reliability are critical.
- Gas Transmission Systems: High-capacity gas pipelines require strength and durability over long distances.
- Industrial Infrastructure Projects: Pipeline systems in large-scale industrial and EPC projects.
Weldability & Processing
Weldability:
X65 pipes offer good weldability with controlled composition.
- Preheating may be required for thicker sections
- Controlled welding procedures ensure quality joints
Fabrication Considerations:
- Suitable for bending and forming under controlled conditions
- Requires skilled fabrication practices
Quality Assurance
- Mechanical Testing: Pipes are tested for yield strength, tensile strength, and elongation as per API 5L standards to ensure performance under high-pressure conditions. Testing validates the material’s ability to withstand operational loads and environmental stresses.
- Dimensional Accuracy: Inspection ensures compliance with tolerances for diameter, thickness, and length. Dimensional precision is critical for pipeline alignment and system integrity. Accurate dimensions improve installation efficiency and reduce the risk of failure.
- Weldability Tests: Material is evaluated to ensure reliable weld performance in high-pressure pipeline systems. Welding quality directly impacts safety and durability. Controlled composition supports consistent weld strength and defect-free joints.
