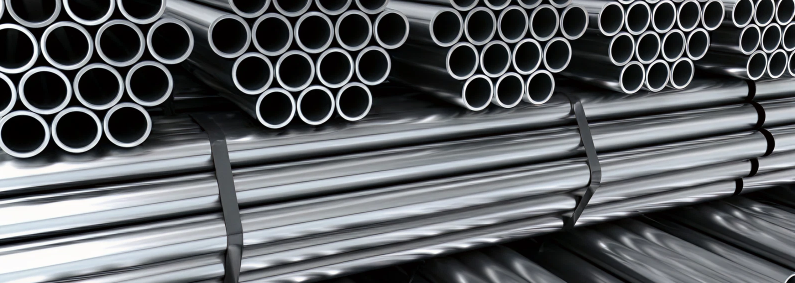

API 5L X90 Line Pipes

Carbon Steel ST52, S355, and ST37 by Riyaarth Overseas

For advanced pipeline systems operating under extreme pressure and demanding conditions, API 5L X90 line pipes represent a high-performance solution. As an ultra-high-strength grade within the API 5L specification, X90 is designed for next-generation pipeline infrastructure requiring maximum efficiency and strength.

With a minimum yield strength of 90,000 psi (~620 MPa), X90 pipes enable a significant reduction in wall thickness while maintaining high pressure capacity. This results in lower material consumption, reduced transportation costs, and improved pipeline efficiency.

X90 pipes are typically supplied in PSL2 and are used in high-end EPC projects, long-distance pipelines, and specialized applications where advanced material performance is required.

Mechanical Properties

Property Value Unit
Yield Strength (min.) 620 MPa
Tensile Strength 700 – 900 MPa
Elongation ≥ 16 %
Hardness ~180 – 260 HB
Density 7.85 g/cm³
Modulus of Elasticity 200 GPa

Chemical Composition

ElementTypical Limit (%)
Carbon (C)≤ 0.20
Manganese (Mn)≤ 1.80
Phosphorus (P)≤ 0.020
Sulfur (S)≤ 0.010

Strict composition control ensures high strength, toughness, and weldability in advanced applications.



Applications

API 5L X90 line pipes are used in ultra-high-performance pipeline systems:
  1. Ultra High-Pressure Pipelines: Long-distance transmission systems operating at very high pressure levels.
  2. Advanced Oil & Gas Projects: High-capacity pipelines requiring maximum efficiency and performance.
  3. Cross-Country & International Pipelines: Large-scale infrastructure projects with strict performance requirements.
  4. Offshore & Deepwater Pipelines: Used in challenging environments requiring high strength and durability.
  5. Energy Infrastructure Projects: Pipelines supporting modern energy systems.
  6. EPC & Specialized Projects: High-end projects requiring advanced materials and strict compliance.

Weldability & Processing

Weldability:
 X90 requires highly controlled welding procedures.

  • Preheating and controlled heat input are required
  • Advanced welding techniques recommended

Fabrication Considerations:

  • Requires specialized fabrication practices
  • Strict adherence to welding standards is critical

Quality Assurance

  • Mechanical Testing: Pipes undergo extensive testing for mechanical properties to ensure performance under extreme conditions. Testing includes yield strength, tensile strength, and elongation. Additional testing ensures reliability in high-pressure environments.
  • Dimensional Accuracy: Strict inspection ensures compliance with tight tolerances for diameter, thickness, and length. Dimensional precision is critical for advanced pipeline systems. Accurate dimensions improve installation and performance.
  • Weldability Tests: Material is evaluated for weldability to ensure strong and reliable joints. Welding quality is critical for maintaining system integrity. Advanced procedures ensure defect-free welds in high-performance applications.

FAQs

What are the key challenges in welding X90 pipes?

X90 requires advanced welding techniques due to its high strength. Heat input must be carefully controlled. Improper welding can lead to defects and reduced performance. Skilled welders and procedures are essential.

How does X90 impact overall project cost?

While X90 has a higher material cost, it reduces wall thickness and overall weight. This can lower transportation and installation costs. It improves efficiency in large-scale projects. Total project cost must be evaluated holistically.

Is API 5L X90 widely available in the market?

X90 is less commonly available compared to lower grades due to specialized production requirements. Lead times may be longer, and sourcing may require coordination with select mills. Planning is essential.

What industries demand X90 pipes?

X90 is primarily used in advanced oil & gas projects and high-pressure pipeline systems. It is also used in specialized EPC projects. Its usage is limited to applications requiring ultra-high strength. It is not typically used in general pipelines.

How does X90 perform under extreme pressure conditions?

X90 provides excellent performance under extreme pressure due to its ultra-high strength. It ensures structural integrity. It is designed for demanding applications. Proper engineering design is critical for optimal performance.
