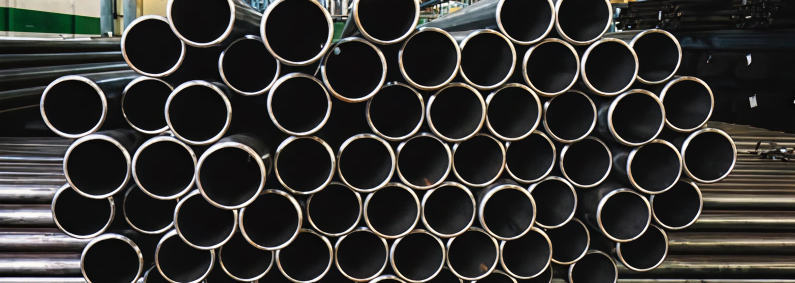

ASTM A106 Grade B Carbon Steel Pipe
ASTM A106 Grade B carbon steel pipes are a vital component in industries requiring high-temperature and high-pressure applications. Riyaarth Overseas specializes in supplying high-quality ASTM A106 Grade B pipes designed for seamless performance in critical environments such as power plants, refineries, petrochemical facilities, and industrial boilers. These pipes offer excellent strength, durability, and resistance to heat and pressure, making them ideal for fluid transportation in demanding operations.
Key Features of ASTM A106 Grade B Pipe
Seamless Construction:
- Eliminates weak points, reducing the risk of leaks and failures in high-pressure environments, making it ideal for critical applications.
- Provides a uniform structure with consistent wall thickness, enhancing flow efficiency and reducing turbulence in fluid transport.
High Temperature Resistance:
- Withstands extreme operating temperatures up to 750°F (400°C) without losing mechanical strength, making it suitable for high-heat applications.
- Commonly used in steam pipelines, boiler tubes, and refineries, where continuous exposure to heat and pressure demands reliable performance.
Corrosion Resistance:
- Compatible with external coatings like fusion-bonded epoxy (FBE) and polyethylene (PE) for superior resistance to oxidation, moisture, and harsh chemicals.
- It can be internally lined with cement mortar or corrosion-resistant alloys to prevent degradation when handling acidic or corrosive fluids.
Excellent Mechanical Properties:
- Features a tensile strength of 60,000 psi and yield strength of 35,000 psi, ensuring durability under extreme stress and heavy loads.
- Offers superior impact and fatigue resistance, making it ideal for applications with fluctuating pressures and mechanical vibrations.
Versatile Applications:
- Widely used in oil and gas transmission, power plants, petrochemical industries, and heat exchanger systems due to its high reliability.
- Essential for structural and mechanical applications, including supports, pilings, and industrial piping, where high-strength materials are required.
Chemical Composition
Element | Composition (%) |
Carbon (C) | 0.30 max |
Manganese (Mn) | 0.29-1.06 |
Phosphorus (P) | 0.035 max |
Sulfur (S) | 0.035 max |
Silicon (Si) | 0.10 min |
Mechanical Properties
Property | Value |
Tensile Strength | 60,000 psi (415 MPa) min |
Yield Strength | 35,000 psi (240 MPa) min |
Elongation | Varies based on pipe thickness |
Manufacturing Process
ASTM A106 Grade B pipes are manufactured using the hot-finished seamless method, which ensures uniformity and strength. The process includes:
- Billet Preparation: Selection of high-quality raw material.
- Hot Rolling: The billet is heated and formed into a hollow tube.
- Cold Drawing (if required): To achieve precise dimensions and enhance strength.
- Heat Treatment: Improves the mechanical properties.
- Testing & Inspection: Ensures compliance with ASTM standards.
Common Applications
Oil & Gas Industry:
Used in pipelines for transporting oil, gas, and petrochemicals. They are also essential in offshore drilling rigs and refinery equipment, ensuring durability even under extreme temperature and pressure conditions. Their resistance to corrosion further enhances the lifespan of pipelines, making them a reliable choice for long-term operations.
Power Plants:
Suitable for high-pressure steam and water lines. Their excellent corrosion resistance ensures long-term performance, while their durability contributes to the reliability and efficiency of critical power generation processes. They also help improve energy output, reducing overall operational failures.
Boilers and Heat Exchangers:
Ideal for heat transfer applications in both industrial and residential heating systems. Their high thermal efficiency and resistance to oxidation help maintain consistent temperature control, ensuring optimal performance and energy conservation. Additionally, they enhance safety by preventing overheating issues.
Construction and Infrastructure:
Used in structural applications such as bridges, high-rise buildings, and tunnels. Their superior load-bearing capacity provides stability in heavy-duty structures, while their resistance to environmental factors supports long-term durability. These materials also enhance sustainability and earthquake-resistant construction.
Available Sizes and Dimensions
ASTM A106 Grade B pipes are available in a wide range of sizes and thicknesses to meet different industrial requirements.
Pipe Size (NPS) | Wall Thickness (Sch 40) | Wall Thickness (Sch 80) |
1/2″ | 0.109″ | 0.147″ |
3/4″ | 0.113″ | 0.154″ |
1″ | 0.133″ | 0.179″ |
2″ | 0.154″ | 0.218″ |
4″ | 0.237″ | 0.337″ |
Testing and Quality Standards
To ensure superior performance and reliability, ASTM A106 Grade B pipes undergo rigorous testing procedures, including:
- Hydrostatic Testing: Verifies pressure-handling capabilities.
- Non-Destructive Testing (NDT): Includes ultrasonic and radiographic tests.
- Chemical Analysis: Ensures material composition compliance.
- Mechanical Testing: Checks tensile strength, hardness, and impact resistance.
Surface Finish and Coatings
To enhance durability and corrosion resistance, the pipes can be provided with various surface treatments, such as:
- Black Paint Coating (Standard)
- Galvanization (Zinc Coating)
- 3LPE Coating for additional corrosion resistance
- Epoxy Coating for chemical and water resistance
Quality Assurance & Packaging
Riyaarth Overseas ensures the highest quality standards for ASTM A106 Grade B pipes, delivering reliable and high-performance piping solutions for critical industries.
Certifications & Standards:
- Compliant with ASTM, ASME, ISO, and API standards.
- Meets industry regulations for high-temperature and high-pressure resistance.
Packaging:
Our pipes are securely packaged to prevent damage during transit. Each pipe is labeled and wrapped in protective materials to ensure safe delivery and easy identification.
Looking for reliable ASTM A106 Grade B pipes? Get in touch with Riyaarth Overseas for durable, high-performance piping solutions tailored to your industry needs!
