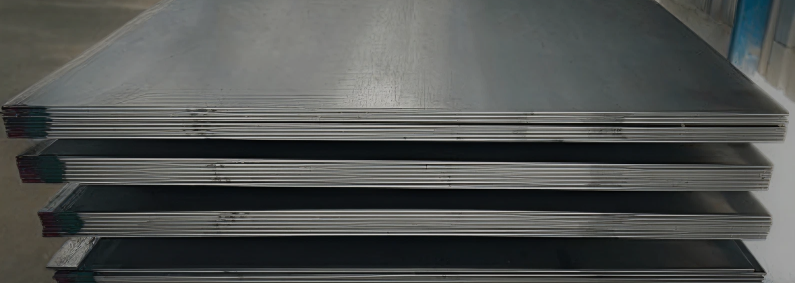

ASTM A36 Carbon Structural Steel Plate
ASTM A36 is the most widely used carbon structural steel specification in the United States and one of the most recognized steel grades globally. Governed by ASTM International, A36 defines a low-carbon steel plate that has been the foundation of American structural construction — from city skylines to interstate bridges — for over six decades.
What makes A36 the dominant choice for general structural work is not any single exceptional property, but a practical balance of all the right ones. It is strong enough for most structural loading conditions, soft enough to weld without preheating, ductile enough to absorb impact and deformation without brittle fracture, and economical enough to be specified by the ton without budget concern. For contractors, fabricators, and structural engineers working on everyday construction projects, A36 is simply the default starting point.
It is closely equivalent to S235 (EN 10025-2) and ST37 (DIN 17100) in international standards, though chemical limits and certification requirements differ between systems.
Mechanical Properties
| Property | Value | Unit |
|---|---|---|
| Tensile Strength | 400 – 550 | MPa |
| Yield Strength (min.) | 250 | MPa |
| Elongation in 200 mm (min.) | 20 | % |
| Elongation in 50 mm (min.) | 23 | % |
| Brinell Hardness | 119 – 159 | HB |
| Density | 7.85 | g/cm³ |
| Modulus of Elasticity | 200 | GPa |
Yield strength applies to plates up to 200 mm thick. For plates over 200 mm, the minimum yield reduces to 220 MPa.
Chemical Composition
| Element | Max. Content (%) |
|---|---|
| Carbon (C) | 0.26 (plates ≤ 20 mm) / 0.25 (plates > 20 mm) |
| Manganese (Mn) | 0.80 – 1.20 (plates > 20 mm) |
| Phosphorus (P) | 0.04 |
| Sulfur (S) | 0.05 |
| Silicon (Si) | 0.40 |
Carbon content limits are adjusted by plate thickness as permitted under ASTM A36.
Applications
- Structural Building Frames — Base plates, gusset plates, shear tabs, and connection plates in commercial and industrial building construction where predictable elastic behavior under load simplifies design.
- Bridge Components — Secondary structural plates, stiffeners, bearing plates, and bracing elements in highway and pedestrian bridge fabrication.
- General Fabrication — Machinery bases, equipment frames, structural brackets, enclosures, and shop-fabricated assemblies across manufacturing industries.
- Storage Tanks — Low-pressure, ambient-temperature tanks for water, chemicals, and bulk materials where pressure vessel certification is not required.
- Shipbuilding — Deck plating, bulkheads, and hull stiffening plates in inland waterway and coastal vessel construction.
- Construction Equipment — Structural frame plates for cranes, excavators, loaders, and site machinery where standard weldability and toughness are the governing requirements.
- Transmission Towers — Structural flat plates, gussets, and base plates used in utility and communication tower fabrication.
Weldability & Processing
- Weldability: A36 plate is one of the most weldable structural steels available. With a maximum carbon content of 0.26% and a carbon equivalent typically below 0.40, it can be welded using SMAW (stick), GMAW (MIG), FCAW (flux-core), SAW (submerged arc), and GTAW (TIG) processes without special precautions in most standard conditions. Preheating is generally not required for thicknesses below 25 mm at ambient temperatures above 10 °C. For plates above 25 mm or in cold weather, a preheat of 65–95 °C is advisable to reduce the risk of hydrogen-assisted cracking.
- Formability: A36 plate bends and rolls readily in both hot and cold conditions. The high elongation (23% minimum over 50 mm gauge) ensures the material deforms significantly before fracture, making it reliable for curved and complex fabricated plate forms.
- Machinability: A36 machines at approximately 72% of the rate of AISI 1112 free-machining steel. Standard HSS and carbide tooling handle A36 plate without difficulty across common machining operations.
Manufacturing Standards & Equivalents
- ASTM A36 / A36M — Standard Specification for Carbon Structural Steel
Quality Assurance
- Mechanical Testing — Every A36 plate is tested for tensile strength, yield strength, and elongation in accordance with ASTM A36 / A370. Results confirm the material meets the minimum 250 MPa yield and 400–550 MPa tensile requirements before release.
- Dimensional Accuracy — Plates are inspected for compliance with ASTM A6 dimensional tolerances covering thickness, width, length, flatness, and camber. Consistent dimensional accuracy reduces fit-up issues during structural assembly and fabrication.
- Weldability Tests — Given A36 plate’s primary role in welded structural applications, weld procedure samples are tested to verify joint strength, ductility, and heat-affected zone integrity — particularly important for applications governed by structural codes such as AISC 360 and AWS D1.1.
