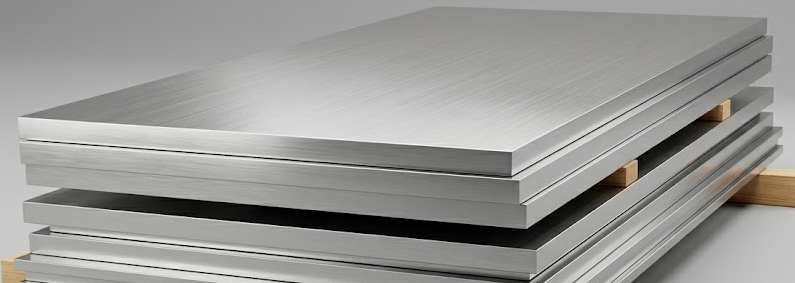

ASTM A387 Grade 91 Alloy Steel Plate
At the frontier of pressure vessel material technology for conventional alloy steels, ASTM A387 Grade 91 stands alone. This 9% chromium, 1% molybdenum, vanadium-modified steel — universally known as 9Cr-1Mo-V or simply “Grade 91” — was developed specifically to meet the extreme demands of modern power generation: supercritical and ultra-supercritical steam conditions where both temperature and pressure push the limits of what ferritic alloy steels can achieve.
Grade 91 is not an incremental upgrade from the lower-alloy A387 grades. It represents a different metallurgical approach entirely. The addition of vanadium, niobium (columbium), and nitrogen to the base 9Cr-1Mo chemistry creates a fine-grained martensitic microstructure that delivers creep rupture strength at 600 °C that neither Grade 11 nor Grade 22 can approach.
Beyond power generation, Grade 91 has found its way into the most thermally demanding process industry applications: very high-temperature reactors, waste heat recovery systems, and equipment in CO₂ capture and hydrogen production facilities, where operating conditions at the edge of carbon steel metallurgy demand a material that has been engineered specifically for that environment.
Mechanical Properties
| Property | Value | Unit |
|---|---|---|
| Tensile Strength | 585 – 760 | MPa |
| Yield Strength (min.) | 415 | MPa |
| Elongation (min.) | 18 | % |
| Brinell Hardness | 174 – 248 | HB |
| Density | 7.70 | g/cm³ |
| Modulus of Elasticity (RT) | 218 | GPa |
Grade 91 is supplied in the normalized and tempered condition only. Hardness limits are critical — both minimum (174 HB) and maximum (248 HB) must be met to ensure proper martensitic microstructure and creep performance.
Chemical Composition
| Element | Content (%) |
|---|---|
| Carbon (C) | 0.08 – 0.12 |
| Manganese (Mn) | 0.30 – 0.60 |
| Phosphorus (P) max. | 0.020 |
| Sulfur (S) max. | 0.010 |
| Silicon (Si) max. | 0.50 |
| Chromium (Cr) | 8.00 – 9.50 |
| Molybdenum (Mo) | 0.85 – 1.05 |
| Vanadium (V) | 0.18 – 0.25 |
| Niobium / Columbium (Nb) | 0.06 – 0.10 |
| Nitrogen (N) | 0.030 – 0.070 |
| Nickel (Ni) max. | 0.40 |
| Aluminum (Al) max. | 0.020 |
The tightly controlled V, Nb, and N additions are essential for developing the fine precipitate microstructure responsible for Grade 91’s creep strength. Deviations — especially in Al and Ni — degrade long-term performance and must be closely monitored.
Applications
- Supercritical & Ultra-Supercritical Power Boilers: Steam drum shells, superheater headers, main steam lines, and pressure parts in power boilers operating at steam conditions above 565 °C and 24 MPa, where Grade 22 no longer provides adequate creep life.
- Combined Cycle & Waste Heat Recovery: High-pressure steam drums and headers in heat recovery steam generators (HRSGs) are subjected to frequent thermal cycling in combined cycle power plants.
- High-Temperature Reactor Pressure Vessels: Shell plates for very high-temperature process reactors in methanol synthesis, hydrogen production, and advanced chemical processing where Grade 22 limits have been exceeded.
- CO₂ Capture Equipment: Pressure vessels and heat exchangers in post-combustion and pre-combustion carbon capture systems operating at elevated temperature and pressure.
- Nuclear Auxiliary Systems: Non-nuclear pressure-retaining components in advanced reactor auxiliary systems where creep strength and radiation-compatible chemistry are both required.
- Petrochemical Very High-Temperature Service: Specialized reactor and transfer line components in deep conversion refinery units operating at the upper boundary of ferritic alloy steel capability.
Creep Performance — Why Grade 91 Matters
The defining advantage of Grade 91 over all lower-alloy A387 grades is creep rupture strength — the stress a material can sustain for 100,000 hours at elevated temperature without rupturing:
| Temperature | Grade 22 Creep Rupture (approx.) | Grade 91 Creep Rupture (approx.) |
|---|---|---|
| 500 °C | ~100 MPa | ~160 MPa |
| 550 °C | ~55 MPa | ~120 MPa |
| 600 °C | ~20 MPa | ~80 MPa |
| 625 °C | Not recommended | ~55 MPa |
Approximate 100,000-hour rupture strength values for comparison purposes only. Design must use ASME-approved allowable stress values from Section II Part D.
This step-change in creep performance is what enables supercritical steam cycles — and the higher thermal efficiency they provide — to be commercially viable using ferritic alloy steel rather than expensive nickel-based superalloys.
Weldability & Processing
- Weldability: Grade 91 is weldable but requires strict adherence to qualified welding procedures. Preheating to 200–300 °C is required to prevent martensite cracking during cooling. Interpass temperature must be controlled to a maximum of 300 °C to avoid excessive austenite grain growth. Matching filler metals (E9015-B9 / ER90S-B9) must be used to ensure weld metal composition matches base metal.
- Post-Weld Heat Treatment — Critical Requirement: PWHT is absolutely mandatory for all Grade 91 welds. The tempering treatment at 730–800 °C must be performed before the weldment cools to room temperature to prevent the formation of untempered martensite, which is extremely brittle. This is a defining fabrication discipline of Grade 91 — unlike lower-alloy Cr-Mo steels, room-temperature cool-down before PWHT can cause irreparable microstructural damage.
- Hardness Control: Both minimum and maximum hardness must be verified after PWHT. A value below 174 HB indicates incomplete normalization or inadequate tempering, compromising creep strength. Above 248 HB indicates insufficient tempering, leaving the steel too hard and brittle for safe pressure service. This dual hardness control is unique to Grade 91 within the A387 family.
- In-Service Degradation Awareness: Grade 91 can suffer Type IV cracking at the fine-grained HAZ in long-term high-temperature service. This is a known failure mode that requires appropriate weld design, proper PWHT, and informed inspection intervals during plant operation.
Manufacturing Standard
- ASTM A387 / A387M — Standard Specification for Pressure Vessel Plates, Alloy Steel, Chromium-Molybdenum
Quality Assurance
- Mechanical Testing: Mechanical Testing — Tensile, yield, and elongation testing is performed per ASTM A370. Hardness testing (both minimum and maximum bounds) is critically important for Grade 91 and is verified on each plate. Charpy V-notch impact testing and elevated temperature yield strength tests are conducted when specified by the purchase order.
- Dimensional Accuracy: Dimensional Accuracy — Plates are measured against ASTM A20 tolerances. Ultrasonic examination per ASTM A578 Level C is commonly specified for Grade 91 plates, given the critical and high-value nature of the equipment for which they are used.
- Weldability Tests: Weldability Tests — Weld procedure qualifications follow ASME IX. For Grade 91 specifically, hardness surveys across the weld, HAZ, and base metal after PWHT are mandatory to confirm the target hardness window has been achieved. Charpy impact testing of the weld and HAZ, and creep rupture tests on welded samples, may be required for boiler code applications.
