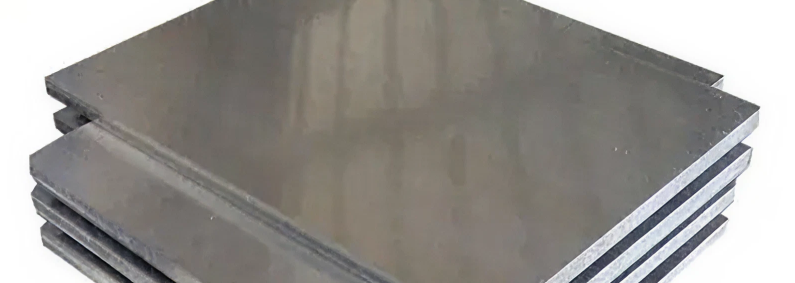

ASTM A516 Grade 60 Boiler Plate

Carbon Steel ST52, S355, and ST37 by Riyaarth Overseas

For applications where balanced strength, ductility, and ease of fabrication are critical, ASTM A516 Grade 60 stands out as a highly reliable material. While Grade 70 dominates high-pressure environments, Grade 60 continues to be widely specified for moderate-pressure boilers and vessels where improved formability and toughness are preferred.

A516 Grade 60 is part of the A516 family of carbon steel plates designed for boiler and pressure vessel service at moderate and lower temperatures. With a tensile strength range of 415–550 MPa and a minimum yield strength of 220 MPa, it provides sufficient load-bearing capability for a wide range of industrial equipment without the higher carbon content associated with stronger grades.

One of the key advantages of Grade 60 lies in its lower carbon content, which enhances weldability and reduces the risk of cracking during fabrication. This makes it particularly suitable for complex vessel geometries, dished ends, and applications involving extensive welding, where fabrication efficiency is a major consideration.

Mechanical Properties

Property Value Unit
Tensile Strength 415 – 550 MPa
Yield Strength (min.) 220 MPa
Elongation in 200 mm (min.) 21 %
Elongation in 50 mm (min.) 25 %
Brinell Hardness 119 – 163 HB
Density 7.85 g/cm³
Modulus of Elasticity 200 GPa

Chemical Composition

ElementMax. Content (%)
Carbon (C)0.21 (t ≤ 13 mm) / 0.23 (13–51 mm) / 0.25 (> 51 mm)
Manganese (Mn)0.60 – 0.90
Phosphorus (P)0.035
Sulfur (S)0.035
Silicon (Si)0.13 – 0.45

The controlled chemistry and fine-grain practice improve ductility and ensure consistent performance during forming and welding operations.



A516 Grade 60 vs Grade 70 — Key Differences

Property A516 Grade 60 A516 Grade 70
Tensile Strength 415 – 550 MPa 485 – 620 MPa
Yield Strength (min.) 220 MPa 260 MPa
Carbon Content Lower Higher
Weldability Better Moderate
Best Use Case Moderate pressure High-pressure boilers
Fabrication Ease Easier Slightly harder

Applications

A516 Gr. 60 is widely used in moderate-pressure boiler and vessel applications where fabrication ease is critical:
  1. Boiler Shells & Components — Used in industrial boilers operating at moderate pressures and temperatures.
  2. Storage Tanks — Fabrication of low to medium pressure tanks for water, oil, and process fluids.
  3. Pressure Vessels — Suitable for vessels where extreme pressure resistance is not the primary requirement.
  4. Heat Exchangers — Shell components where thermal cycling and weldability are key concerns.
  5. Process Equipment — Widely used in chemical plants and processing units with moderate design conditions.

Weldability & Processing

  • Weldability: A516 Grade 60 offers excellent weldability due to its lower carbon equivalent, making it easier to handle during fabrication.
    Up to 25 mm: Typically no preheat required
    25–50 mm: Light preheat (50–100 °C)
    Above 50 mm: Controlled preheat depending on conditions
  • Post-Weld Heat Treatment (PWHT): PWHT may be required depending on:
    Plate thickness
    Service conditions
    Code requirements (ASME Section VIII)
    However, compared to higher grades, PWHT requirements are generally less stringent.
  • Normalizing: Normalized A516 Gr. 60 improves uniformity and toughness, especially for:
    Low-temperature service
    Critical fabrication applications
  • Forming Characteristics: Grade 60 is highly suitable for cold forming operations, including:
    Dished heads
    Cylindrical shells
    Complex shapes
    Its ductility reduces the risk of cracking during forming.

Manufacturing Standards & Equivalents

  • ASME Equivalent : SA-516 Grade 60d
  • ASTM A516

Quality Assurance

  • Mechanical Testing — Each plate undergoes tensile and yield strength verification along with elongation testing as per ASTM A370 standards.
  • Dimensional Inspection — Plates are checked for flatness, thickness tolerance, and surface quality in accordance with ASTM A20.
  • Welding Qualification — Welding procedures are qualified under ASME Section IX to ensure joint integrity and performance.

FAQs

What is ASTM A516 Grade 60 boiler plate used for?

A516 Grade 60 is used for boilers, pressure vessels, and storage tanks operating under moderate pressure conditions. It is commonly selected where fabrication ease and ductility are important. It is widely used in industries like chemical processing, water treatment, and general fabrication.

What is the maximum operating temperature for A516 Grade 60?

A516 Gr. 60 is typically used in applications up to around 450 °C, depending on design conditions and code requirements. At higher temperatures, allowable stresses reduce and material selection must be carefully evaluated. Engineers should refer to ASME design data for precise limits.

What is the difference between A516 Gr. 60 and Gr. 70?

Grade 60 has lower strength compared to Grade 70 but offers better ductility and weldability. It is easier to fabricate and form into complex shapes. Grade 70 is preferred for higher pressure applications, while Grade 60 is ideal for moderate conditions. The choice depends on design pressure and fabrication requirements.

Does A516 Grade 60 require PWHT?

PWHT may be required depending on thickness and service conditions, but it is generally less demanding than higher-strength grades. It is often applied to improve dimensional stability and reduce residual stresses after welding. Project specifications and ASME codes define the exact requirements.

Can A516 Grade 60 be used for low-temperature service?

Yes, A516 Grade 60 can be used at moderately low temperatures, especially when normalized. For sub-zero applications, impact testing may be required to ensure toughness. Normalized plates provide improved performance in such conditions.
