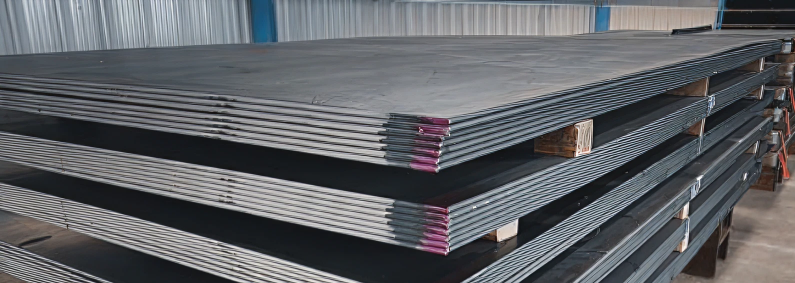

IS 2062 E350C Carbon Steel Sheets and Plates

Carbon Steel ST52, S355, and ST37 by Riyaarth Overseas

India’s structural steel standard IS 2062 covers a wide range of grades and quality levels, but when project specifications require both high strength and guaranteed low-temperature toughness in a single structural plate, E350C is the grade that answers the call. It is the highest-toughness sub-grade within the E350 strength level of IS 2062, and in many demanding domestic infrastructure and industrial projects, it is the plate that prevents over-specification of imported European or American grades.

IS 2062 E350C sits at the intersection of two engineering requirements that are not always found together in structural carbon steel: a minimum yield strength of 350 MPa that enables efficient structural design, and mandatory Charpy V-notch impact testing at −20 °C that confirms the plate will not fail in a brittle mode during cold-season operation, handling, or shock loading. The “C” in E350C designates this highest-toughness quality level within the E350 grade family, distinguishing it from E350A (no impact requirement) and E350B (0 °C impact testing).

For structural engineers specifying plates for Indian projects — particularly in northern India where winter temperatures fall significantly, or for crane structures, pressure vessel attachments, and industrial plant structural steel — E350C provides a domestically sourced, BIS-certified plate that meets international structural standards without the premium or lead time of imported material.

IS 2062 E350 Quality Levels — Understanding the Designation

QualityImpact Test TemperatureCharpy Energy (min.)Use Case
E350ANot required—General structural, ambient conditions
E350B0 °C27 JModerate structural, mild cold conditions
E350C−20 °C27 JCold-climate, dynamic & crane structures

The “E” denotes weldable structural steel. “350” is the minimum yield strength in MPa. The quality suffix A/B/C defines impact toughness — C being the most demanding.



Mechanical Properties

Property Value Unit
Tensile Strength (min.) 490 MPa
Yield Strength (min., ≤ 20 mm) 350 MPa
Yield Strength (min., 20–40 mm) 330 MPa
Yield Strength (min., > 40 mm) 320 MPa
Elongation (min., GL = 5.65√S₀) 22 %
Charpy Impact at −20 °C (min.) 27 J
Brinell Hardness (max.) 229 HB
Density 7.85 g/cm³

Chemical Composition

Element Max. Content (%)
Carbon (C) 0.20
Manganese (Mn) 1.50
Silicon (Si) 0.45
Sulfur (S) 0.040
Phosphorus (P) 0.040
Carbon Equivalent (CE) 0.42 max

How E350C Compares to Related Grades

PropertyIS 2062 E350CS355J2 (EN 10025-2)ST52.3 (DIN 17100)
Yield Strength350 MPa355 MPa355 MPa
Tensile Strength490 MPa (min.)470–630 MPa490–630 MPa
Charpy Test Temp.−20 °C−20 °C−20 °C
Charpy Energy27 J27 J27 J
Governing StandardIS 2062 (BIS)EN 10025-2DIN 17100
Primary MarketIndiaEuropeGermany / International

E350C is the Indian structural standard’s closest equivalent to S355J2 and ST52.3, making it the domestically procurable alternative for Indian projects where these grades are referenced.



Applications

IS 2062 E350C plates are specified for Indian structural and industrial projects requiring both high strength and guaranteed toughness:
  1. Industrial Plant Structural Steel — Primary structural frames for steel plants, power stations, cement plants, and refineries in northern and central India, where winter temperatures require impact-tested structural plate.
  2. Crane & Material Handling Structures — Overhead crane girders, goliath crane structures, gantry frames, and hoist beam plates where IS 3177 and IS 807 crane design standards require impact-tested plate material.
  3. Railway Bridge Structures — Main girder plates and structural members in railway bridges are designed to Indian Railways bridge codes, where both strength and toughness are specified.
  4. Pressure Vessel Structural Attachments — Saddle plates, skirt plates, and structural support brackets welded to pressure vessels in refineries and petrochemical facilities, where IS 2825 vessel codes require impact-tested structural attachments.
  5. Offshore Support Structures — Structural plates for offshore supply vessel fabrication and nearshore structural steel where Indian classification society rules require an impact-tested plate.
  6. Mining & Heavy Industry — Structural plates for crusher housings, mill foundations, structural skids, and equipment frames in mines and heavy industry operating in cold-season regions.

Weldability & Processing

  • Weldability: IS 2062 E350C welds well with standard arc welding processes using matching electrodes. The controlled CE of 0.42 maximum ensures good weldability across the standard thickness range. For plates up to 25 mm, no preheating is generally required. For plates above 25 mm, preheating to 100–150 °C is recommended, particularly in cold ambient conditions or for high-restraint joints.
  • Welding Consumables: For E350C applications where impact toughness of the weld joint is required (which it typically is, given the C quality specification), welding electrodes and wire should be selected to provide a minimum 47 J or 27 J at −20 °C impact energy at the weld deposit — consistent with the base plate toughness requirement.
  • Flame and Plasma Cutting: E350C plates cut cleanly by oxy-fuel and plasma processes. The controlled carbon content keeps cut-edge hardening within manageable limits. For thicker plates used in critical welded connections, edge grinding and inspection prior to welding is recommended.
  • Surface Conditions: E350C plates are supplied in the as-rolled or normalized condition. For plates above 40 mm or where consistent through-thickness toughness is required, a normalized supply condition should be explicitly specified in the purchase order.

Manufacturing Standards & Equivalents

  • IS 2062:2011 — Hot Rolled Medium and High Tensile Structural Steel (Bureau of Indian Standards)

Quality Assurance

  • Mechanical Testing — Every plate is tested for tensile strength (min. 490 MPa), yield strength at the applicable thickness, elongation (min. 22%), and Charpy V-notch impact at −20 °C (min. 27 J) per IS 1608 and IS 1757. The mandatory impact test distinguishes E350C from lower-quality E350 sub-grades and is the key certification point for cold-climate and crane applications.
  • Dimensional Accuracy — Plates are verified for thickness, width, length, flatness, and edge squareness as per IS 1730 tolerances. Consistent plate geometry is critical for Indian infrastructure projects where fabrication is performed to tight dimensional schedules.
  • Weldability Tests — Carbon equivalent verification is performed on each heat to confirm CE ≤ 0.42. Weld procedure qualification tests are conducted per IS 7307 or equivalent, including Charpy impact testing of the weld and heat-affected zone at −20 °C for E350C applications.

FAQs

What is IS 2062 E350C used for?

IS 2062 E350C is used for structural steel plates in applications requiring both high strength and guaranteed low-temperature toughness — including crane girders, railway bridges, industrial plant frames, pressure vessel attachments, and structural steel for cold-climate projects in India. It is the highest toughness sub-grade of IS 2062 E350 and is the Indian equivalent of European S355J2 plate.

What is the difference between IS 2062 E350A, E350B, and E350C?

All three sub-grades share the same yield strength (350 MPa) and tensile strength (490 MPa min.). The difference is impact toughness: E350A has no impact requirement; E350B is tested at 0 °C (27 J min.); E350C is tested at −20 °C (27 J min.). E350C is the correct specification when the structure will experience cold temperatures, dynamic loading, or when the project specification explicitly requires a “C” quality sub-grade.

Is IS 2062 E350C equivalent to S355J2?

Yes, IS 2062 E350C is considered broadly equivalent to S355J2 under EN 10025-2 — both have ~350–355 MPa yield strength and Charpy impact testing at −20 °C with 27 J minimum energy. E350C is governed by the Indian BIS standard IS 2062, while S355J2 is a European EN standard. For Indian domestic projects, E350C provides equivalent structural performance without the need for imported plate.

What does the carbon equivalent limit mean for E350C weldability?

The CE limit of 0.42 maximum in IS 2062 E350C quantifies the combined effect of carbon and alloying elements on hardenability. A CE of 0.42 falls in the “good weldability” range, meaning standard arc welding without mandatory preheating is possible for plates up to 25 mm. For thicker plates or high-restraint joints, a modest preheat of 100–150 °C is recommended.

Is Charpy impact testing mandatory for IS 2062 E350C?

Yes. Charpy V-notch impact testing at −20 °C with a minimum absorbed energy of 27 J is mandatory for E350C and is what defines the “C” quality designation within IS 2062. This test is not required for E350A and is performed at 0 °C for E350B, making E350C the only IS 2062 E350 sub-grade certified for cold-temperature toughness.

What is the maximum plate thickness available in IS 2062 E350C?

IS 2062 E350C plates are commonly produced up to 100 mm thickness. Above 40 mm, the yield strength reduces to 320 MPa as specified in IS 2062. For very thick plates above 63 mm, a normalized supply condition is strongly recommended to ensure consistent toughness through the full plate thickness, and full-thickness Charpy sampling may be specified.
