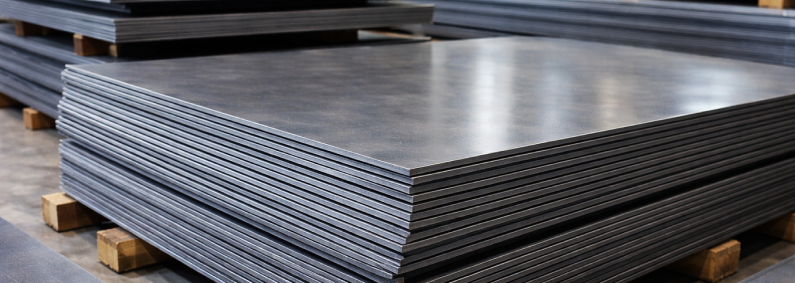

ST52.3 Carbon Steel Sheets and Plates
ST52.3 is not simply another designation for ST52 — it is a specifically qualified sub-grade that adds a layer of assurance that the base ST52 specification alone does not provide. Where ST52 certifies strength, ST52.3 certifies both strength and toughness, making it the correct specification for structural plates that will be welded, loaded dynamically, or operated in cold environments.
The “.3” suffix in the DIN 17100 classification system designates the normalized delivery condition with guaranteed notch impact toughness. ST52.3 plate is tested by Charpy V-notch impact testing to confirm a minimum absorbed energy — typically at 0 °C or −20 °C depending on the sub-designation — that confirms the steel will not suffer brittle fracture under sudden load at the specified service temperature. This distinction is what separates ST52.3 from the generic ST52 specification on procurement documents for cranes, offshore structures, lifting equipment, and cold-climate construction projects.
In practical procurement and engineering terms, ST52.3 corresponds closely to S355J2 (EN 10025-2) and is commonly referenced interchangeably in project specifications. If a drawing calls for S355J2 plates and the inquiry goes to market as ST52.3, experienced engineers treat them as equivalent, subject to standard cross-reference confirmation.
How ST52.3 Differs from ST52
| Property | ST52 | ST52.3 |
|---|---|---|
| Delivery Condition | As-rolled or normalized | Normalized (mandatory) |
| Impact Toughness | Not always guaranteed | Guaranteed (Charpy tested) |
| Impact Test Temperature | Not specified | 0 °C or −20 °C |
| Suitable for Cold Service | With qualification | Yes, by design |
| Equivalent EN Grade | S355 (general) | S355J2 / S355J2+N |
| Typical Applications | General structural | Cranes, cold climate, dynamic load |
Mechanical Properties
| Property | Value | Unit |
|---|---|---|
| Tensile Strength | 490 – 630 | MPa |
| Yield Strength (min., ≤ 16 mm) | 355 | MPa |
| Yield Strength (min., 16–40 mm) | 345 | MPa |
| Yield Strength (min., 40–63 mm) | 335 | MPa |
| Elongation (min.) | 20 | % |
| Charpy Impact (0 °C) | ≥ 27 | J |
| Charpy Impact (−20 °C) | ≥ 27 | J (sub-grade dependent) |
| Brinell Hardness | 163 – 190 | HB |
| Density | 7.85 | g/cm³ |
Chemical Composition
| Element | Max. Content (%) |
|---|---|
| Carbon (C) | 0.20 |
| Silicon (Si) | 0.55 |
| Manganese (Mn) | 1.60 |
| Phosphorus (P) | 0.030 |
| Sulfur (S) | 0.030 |
| Nitrogen (N) | 0.012 |
| Carbon Equivalent (CE) | ≤ 0.42 |
ST52.3 has tighter phosphorus and sulfur limits than base ST52, contributing to the improved toughness performance that defines the sub-grade.
Applications
- Crane Structures & Lifting Equipment — Boom plates, mast sections, trolley frames, and hook blocks where DIN EN 13001 crane design standards require impact-tested structural plate at specified temperatures.
- Cold-Climate Steel Construction — Structural plates for buildings, industrial facilities, and infrastructure in northern Europe, high-altitude sites, and cold-storage buildings where ambient temperatures fall below 0 °C during construction or service.
- Offshore Topside Structures — Deck plates, equipment support frames, and secondary structural elements on offshore platforms where temperature and dynamic loading both govern material selection.
- Pressure Vessel Structural Components — Saddle plates, support brackets, and non-pressure structural attachments welded to pressure vessels, where the vessel specification requires impact-tested plates on all welded components.
- Rail & Transport Structures — Underframe plates, bolster sections, and structural members in railway rolling stock and transport infrastructure where fatigue and impact resistance are design requirements.
- Mining & Materials Handling — Conveyor structure plates, screen frames, and structural skids for equipment installed in cold-climate mining operations.
Weldability & Processing
- Weldability: The tighter chemistry and normalized condition of ST52.3 plate actually improve welding performance relative to as-rolled ST52. The controlled CE (≤ 0.42) and lower P/S limits produce more consistent HAZ behavior. Preheating requirements mirror ST52: not required for plates ≤ 25 mm at ambient temperature, recommended at 100–150 °C for plates above 25 mm.
- Importance of Matched Consumables: For ST52.3 plate used in applications where impact toughness is specified, welding consumables must also be selected to provide matching or exceeding impact toughness at the required test temperature. Using standard S355-matching consumables without checking their impact classification can result in a weld that does not meet the overall joint impact requirement, even if the base plate does.
- Normalization & Plate Behavior: Because ST52.3 is supplied normalized, plates typically show better flatness and more consistent through-thickness properties than as-rolled plate. This is particularly beneficial for large fabrications where plate shape stability during and after cutting and welding is important.
Manufacturing Standards & Equivalents
- DIN 17100 — ST52-3 designation
- EN 10025-2 — S355J2 / S355J2+N equivalent
- BS 4360 — Grade 50D equivalent
- ASTM A572 Gr. 50 — Broadly comparable (with supplementary Charpy)
Quality Assurance
- Mechanical Testing — Tensile strength, yield strength, and elongation are tested per standard requirements. Charpy V-notch impact testing at the specified temperature (0 °C or −20 °C) is mandatory for ST52.3 and is performed on a per-heat, per-thickness basis to confirm toughness compliance.
- Dimensional Accuracy — Normalized plates are measured for thickness, flatness, width, and length. Normalizing improves flatness relative to the as-rolled plate, but post-normalization dimensional verification ensures plates meet the cutting and fit-up tolerances needed for precision-fabricated structures.
- Weldability Tests — Weld procedure qualifications include impact testing of weld metal and heat-affected zone samples at the same temperature as the base plate impact requirement, confirming that the full welded joint — not just the base plate — meets the specified toughness level.
